NavigationStack & TabView

Hierarchical navigation (NavigationStack) combined with horizontal navigation (TabView)

Often, or perhaps always, we have a hierarchical navigation (NavigationStack) combined with horizontal navigation (TabView). Let’s see how to merge them:

struct ContentView: View {
    var body: some View {
        NavigationStack {
            TabView {
                Tab("Contacts", systemImage: "rectangle.stack.person.crop.fill") {
                    FirstView()
                }
                Tab("Chat", systemImage: "message.fill") {
                    SecondView()
                }
            }
        }
    }
}

We have declared a NavigationStack that contains the TabView. Now, within any of the tabs, we can navigate forward and return.

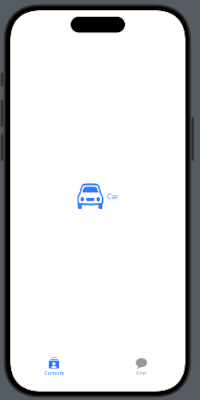

Here is the FirstView:

struct FirstView: View {
    var body: some View {
        NavigationLink(destination: ThirdView()) {
            HStack {
                Image(systemName: "car")
                    .resizable()
                    .frame(width: 60, height: 60)
                Text("Car")
            }
        }
    }
}

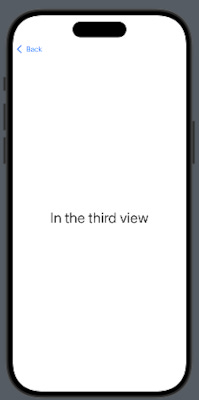

Instead, here is the ThirdView:

struct ThirdView: View {
    var body: some View {
        Text("In the third view")
            .font(.largeTitle)
    }
}

To achieve this:

If, in the third view, we want to navigate to another view, we simply need to add another NavigationLink with the new destination.

A similar behavior occurs in the SecondView; for simplicity, we navigate to an EmptyView.

    var body: some View {
        VStack{
            NavigationLink(destination: EmptyView()) {
                HStack {
                    Image(systemName: "bus")
                        .resizable()
                        .frame(width: 60, height: 60)
                    Text("Bus")
                }

            }
        }
    }
}
